New Titanium Grade Cores

New Titanium Grade cores named GT. It is the world’s best performing magnetic material developed by Chang Sung Corporation (CSC)’s innovative manufacturing process on traditional High Flux cores. The new High Flux GT has about 25% lower core loss at 200kHz and a higher DCB compared to CSC original High Flux material and far better than other competitors in the world. Therefore, GT is a perfect solution for on-board charger (OBC) of Electronic Vehicles (EV) which require high efficiency and also well to apply on 5G devices, and optimize PFC and Output inductor designs.

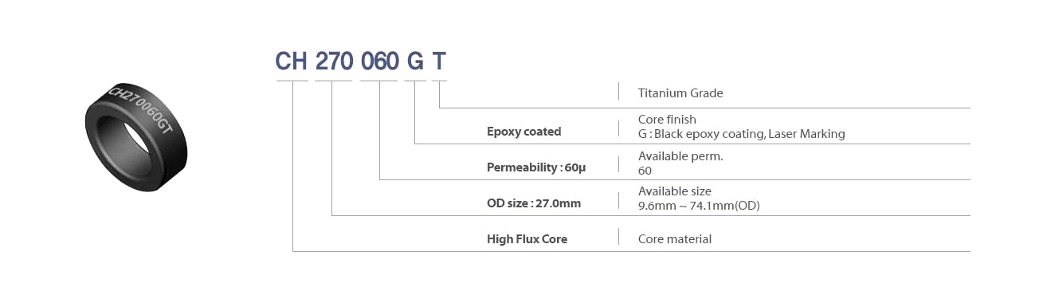

Part No Nominal Inductance(nH/N²) Path Length (cm) Cross Section Area (cm²) Dimensions(mm)
Before Finish Dimensions After Finish Dimensions
OD(mm) ID(mm) HT(mm) OD(mm) ID(mm) HT(mm)
060u MAX MIN MAX MAX MIN MAX
CH097GT 32 2.18 0.095 9.65 4.78 3.96 10.29 4.27 4.57
CH102GT 32 2.38 0.1 10.16 5.08 3.96 10.8 4.57 4.57
CH112GT 26 2.69 0.091 11.18 6.35 3.96 11.9 5.89 4.72
CH127GT 27 3.12 0.114 12.7 7.62 4.75 13.46 6.99 5.51
CH147GT 32 3.63 0.154 14.7 8.9 5.6 15.5 8.2 6.4
CH166GT 35 4.11 0.192 16.51 10.16 6.35 17.4 9.53 7.11
CH172GT 43 4.14 0.232 17.27 9.65 6.35 18.03 9.02 7.11
CH203GT 32 5.09 0.226 20.32 12.7 6.35 21.1 12.07 7.11
CH229GT 43 5.67 0.331 22.86 13.97 7.62 23.62 13.39 8.38
CH234GT 51 5.88 0.388 23.57 14.4 8.89 24.3 13.77 9.7
CH252GT 62 6.1 0.504 25.2 14.6 10 26 13.9 10.8
CH270GT 75 6.35 0.654 26.92 14.73 11.18 27.7 14.1 11.99
CH300GT 68 7.27 0.652 30 17.4 10.9 30.8 16.7 11.8
CH330GT 61 8.15 0.672 33.02 19.94 10.67 33.83 19.3 11.61
CH343GT 38 8.95 0.454 34.29 23.37 8.89 35.2 22.6 9.83
CH358GT 56 8.98 0.678 35.81 22.35 10.46 36.7 21.5 11.28
CH378GT 70 9.4 0.867 37.8 23.2 12.5 38.7 22.3 13.4
CH400GT 81 9.84 1.072 39.88 24.13 14.48 40.7 23.3 15.37
CH434GT 92 10.74 1.308 43.4 26.4 16.2 44.3 25.5 17.1
CH467GT 135 10.74 1.99 46.74 24.13 18.03 47.6 23.3 18.92
CH468GT 86 11.63 1.34 46.74 28.7 15.24 47.6 27.9 16.13
CH488GT 101 11.74 1.569 48.8 27.9 15.8 49.7 27 16.7
CH508GT 73 12.73 1.25 50.8 31.75 13.46 51.7 30.9 14.35
CH540GT 102 12.63 1.71 54 29 14.4 54.9 28.1 15.3
CH571GT 138 12.5 2.29 57.15 26.39 15.24 58 25.6 16.1
CH572GT 75 14.3 1.444 57.15 35.56 13.97 58 34.7 14.86
CH596GT 125 14.33 2.371 59.6 34 19.5 60.6 33 20.5
CH610GT 192 14.37 3.675 62 32.6 25 63.1 31.37 26.27
CH640GT 113 16.04 2.394 64 40 21 65.1 39 22.1
CH680GT 143 15.81 3.008 68 36 20 69.1 35 21.1
CH740GT 206 18.39 4.788 74.1 45.3 35 75.2 44.07 36.27
